Delta Protekt

An anti-corrosion protection system, applied by immersion

Delta Protekt KL-100

Delta protekt ®Kl-100 is an anti-corrosion protection system, applied by immersion, centrifuging and bulk polymerisation for metal items, particularly steel parts.
This is an organic coating with zinc and aluminium flakes, providing excellent protection against corrosion.

It allows later treatments to add a colour, offering greater anticorrosion protection, chemical resistance and, should this be necessary, also allowing lubrication.

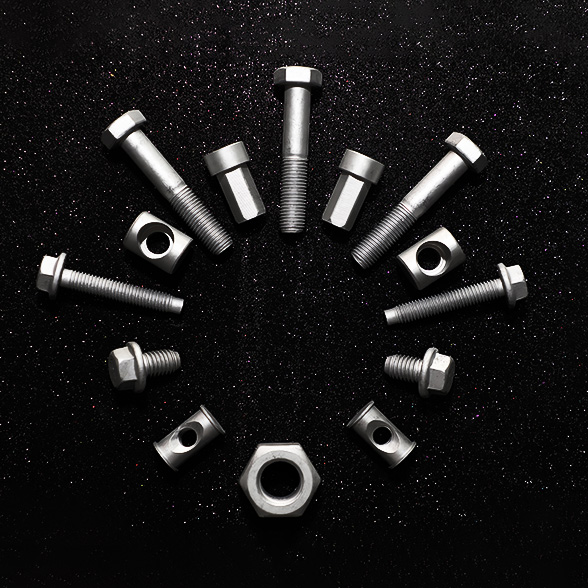

Delta protekt ®Kl-100 can be applied to screws, nuts, bolts, rivets and extra-strong securing items for the automobile, building, renewable energy and maritime sectors. This is also applied in parts not for securing such as cast, fine cut and stamped parts, etc.

Characteristics

  • Coating of non-hydrogenated zinc and aluminium flakes. Provides a cathodic protection against corrosion (barrier effect).
  • Reduction of white rust (zinc oxide).
  • Cured at low temperature (220 º-250ºC) so as not to have an effect on the structure in high-resistance steels.
  • Resistant to chemical products, solvents, fuels, etc.
  • Withstands temperatures of up to 150ºC.
  • Allows multiple screwing and unscrewing operations.
  • Heavy metal-free product not including any RoHS 2002/95/ EC: Cr6+,Pb,Cd or Hg, environmentally friendly.
  • Complies with REACH requirements.

Delta Protekt KL-120

Delta protekt ®Kl‐120 is an anti-corrosion protection system, applied by immersion, centrifuging and bulk polymerisation for metal items, particularly steel parts.
This is an organic coating with zinc and aluminium flakes, providing excellent protection against corrosion. Great covering power.
It allows later treatments to add a colour, offering greater anticorrosion protection, chemical resistance and, should this be necessary, also allowing lubrication.
Delta protekt ®Kl-100 can be applied to screws, nuts, bolts, rivets and extra-strong securing items for the automobile, building, renewable energy and maritime sectors. This is also applied in parts not for securing such as cast, fine cut and stamped parts, etc.

Characteristics

  • Coating of zinc and aluminium flakes.
  • Reduction of white rust (zinc oxide).
  • Cured at low temperature (220 º-250ºC) so as not to have an effect on the structure in high-resistance steels.
  • Resistant to chemical products, solvents, fuels, etc.
  • Can withstand 500h.CNS after applying a temperature of over 300ºC to this for 1h.
  • Allows multiple screwing and unscrewing operations.
  • Complies with the environmental requirements of the automobile industry, as well as those of European Directive 2/53/CE.
  • Heavy metal-free product not including any RoHS 2002/95/ EC: Cr6+,Pb,Cd or Hg, environmentally friendly.
  • Complies with REACH requirements.

DELTA-PROTEKT& TC 502 GZ as a topcoat in combination with a zinc flake basecoat or other metallic substrates, is responsible for a wide range of multifunctional properties. The topcoat completes such a zinc flake system with a very narrow coefficient of friction window. In addition, the coating is free of PFAS and free from harmful heavy metals and has a silver finish.

Technical Information

  • Coating weight: 2–10 g/m²
  • Defined coefficient of friction window
  • Fulfills different COF windows as requested in
    • GMW 3359
    • Scania 3950
    • Ford WX 100
    • FCAPS 11036
    • VW 01131
    • VDA standard 235-101
Application
The appropriate application method usually depends on the geometry of the component. Recommended:
  • Spray
  • Dip-spin
The surface must be clean, dry and free of rust, dust, oil/grease and silicones before coating.

Fields of Application
The product can be used on numerous metric components and other fasteners.
